10 Station Metal U Runner Roll Forming Machine For Light Steel Stud / Track

Name: 10 Station Metal U Runner Roll Forming Machine For Light Steel Stud Track
Brand: TECHWELL
Price: 1 USD

China 10 Station Metal U Runner Roll Forming Machine For Light Steel Stud / Track wholesale

Place of Origin : China

Brand Name : TECHWELL

Certification : CE

Model Number : TW-ST45

MOQ : 1 Set

Price : Contact Us

Packaging Details : Standard packing

Delivery Time : 55-65 working days

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 sets

Forming Material Thickness : 0.4-0.7mm

Forming Material : Galvanized Steel

Drive Type : Chain Drive

Shaft Diameter : 60mm

Forming Stations : About 16 Stations

Forming Speed : About 0-15m/min

Contact Now

10 Station Metal U Runner Roll Forming Machine For Light Steel Stud / Track

Main Specifications of U Runner Roll Forming Machine

Material	G.i Coil
Material Thickness	0.4-0.7mm
Main Power	4KW
Hydraulic Power	4KW
Forming Station	About 16 stations
Axis Diameter	60mm
Forming Speed	0-15m/min
Forming Frame Structure	Guiding Column + Slide Blocks
PLC	PANASONIC Brand
Machine Diameter	About 7000mm (L)x 800mm (W) x 1300mm (H)
Weight of Machine	About 4Ton
Voltage	380V, 3Phase, 50HZ (or depend on customer's requirement)

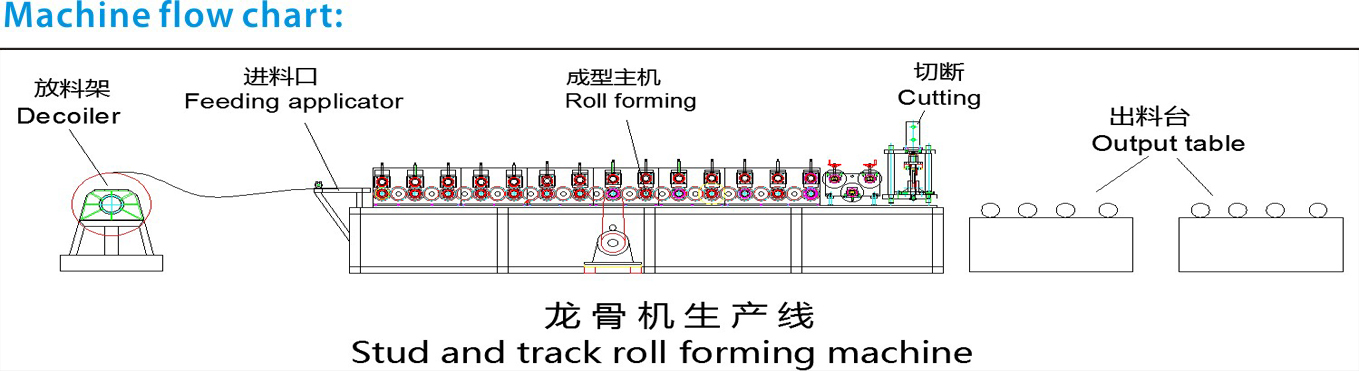

Working Flow of U Runner Roll Forming Machine

Decoiler / Uncoiler--Pinch Feeding--Main Roll Forming--Hydraulic Cutting--Runout Table

10 Station Metal U Runner Roll Forming Machine For Light Steel Stud / Track

Reference Drawings

10 Station Metal U Runner Roll Forming Machine For Light Steel Stud / Track

Applications

Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten,

roof truss, c truss, light weight steel truss...

10 Station Metal U Runner Roll Forming Machine For Light Steel Stud / Track

Our Advantage

High Quality
Reliable
Durable
Reasonable Price
Good after Service
1 Year Warranty
More Than 10 Years Experience

Machine Picture

10 Station Metal U Runner Roll Forming Machine For Light Steel Stud / Track

Contacts of WUXI TECHWELL

Item	Contact Methods
Contact Person	Lemon
E-mail / Skype	sales@wxtechwell.com
Tel / Whatsapp	+86-15861597732
Website	https://www.wxtechwell.com
